行业 Industries：丝网、印刷、纺织等领域网版制作。
It is applied in fields such as screen printing, printing, and textiles.
网布类型 Mesh Fabric Types：尼龙网（网目数范围：60-400 目）。
(Mesh count range: 60-400 mesh).
① 核心技术与性能优势 Core Technologies and Performance Advantages

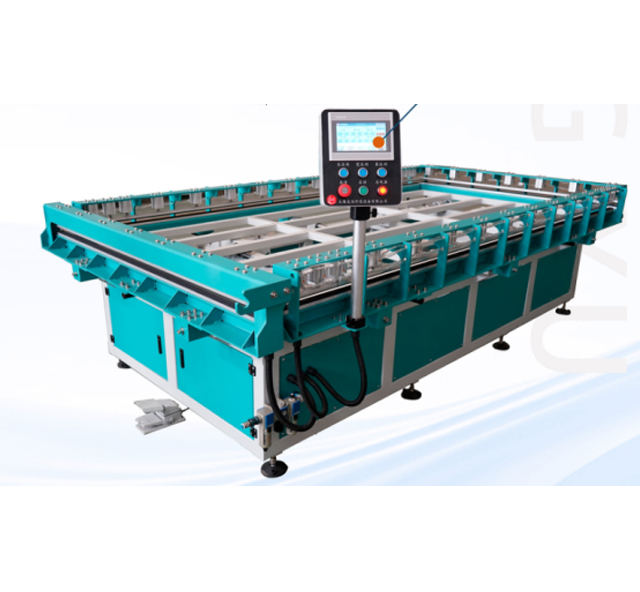

全伺服电动传动系统
Full-Servo Electric Drive System
采用多轴伺服电机驱动，替代传统气动 / 普通电机结构，传动精度达 ±0.5mm，拉网过程无粘黏、无滞后，确保不同张力的网布过辊后张紧状态保持一致。
It adopts multiaxis servo motor drive, replacing the traditional pneumatic/ordinary motor structure. The transmission accuracy reaches ±0.5mm, and there is no adhesion or lag during the screen-stretching process, ensuring uniform tension on the mesh fabric after passing through the rollers.
伺服系统响应速度快（<0.2s），可实时补偿网布张力波动，适配不同材质网布的拉伸特性。
The servo system has a fast response speed (<0.2s), which can compensate for tension fluctuations in real time and adapt to the stretching characteristics of mesh fabrics made of different materials.
可预设张力控制、自预警
Tension Preset & Self-Alarm
可根据网布材质、网目数、网框尺寸预设网版拉力以达到所需张力，满足不同工艺对网版张力的严格要求。
It can preset the servo torque according to the mesh fabric material, mesh count, and screen frame size to achieve the required tension, meeting the strict tension requirements of different processes for the screen.
网版的实时张力反馈，屏幕动态显示当前力值，若超出设定误差范围，设备自动停机并提示，避免不合格网版产生。
The servo torque is fed back in real time, and the current torque value is dynamically displayed on the screen. If it exceeds the set error range, the equipment will automatically stop and give a prompt to avoid production of unqualified screens.
智能化操作与控制
Intelligent Operation and Control
配置昆仑通态触摸屏，操作界面简洁（含操作页面、参数设置、手动操作、状态监控等模块），支持参数保存 / 调用。
It is equipped with a Kunlun Tongtai touch screen, featuring a simple operation interface (including modules such as operation page, parameter setting, manual operation, and status monitoring) and supporting parameter saving/recall.
支持 “自动 / 手动” 双模式：自动模式下一键完成拉网流程；手动模式可单独控制横向、纵向拉网及网版动作，便于故障排查与功能调试。
It supports "automatic/manual" dual modes: in automatic mode, the screen stretching process can be completed with one click; in manual mode, the transverse and longitudinal stretching and screen locking actions can be controlled independently for troubleshooting and function debugging.
结构稳定与安全保障
Structural Stability and Safety Assurance
机身采用高强度钢材焊接，网夹采用气缸锁片并配备防松助，拉网时网框无位移，确保网版张力均匀性（同一网版张力误差≤3%）。
The machine body is welded with high-strength steel. The mesh clamps adopt cylinder lock pieces and are equipped with anti-loosening aids, ensuring no displacement of the screen frame during stretching and guaranteeing the uniformity of screen tension (tension error of the same screen ≤3%).
配备急停按钮、电机过载保护、张力异常报警等安全功能，警示标识符合工业设备安全标准。
It is equipped with safety functions such as an emergency stop button, motor overload protection, and tension abnormality alarm. Safety warnings are marked in accordance with industrial equipment safety standards.
产品价值（Product Value）提升效率：自动拉网流程，单网版制作时间较传统设备缩短 50% 以上，减少人工干预。
Efficiency Improvement: The automatic screen stretching process reduces the production time of a single screen by more than 50% compared with traditional equipment, and minimizes manual intervention.
保证品质：精准张力控制与实时反馈，网版合格率提升至 90% 以上，降低材料浪费。
Quality Assurance: With precise tension control and real-time feedback, the qualification rate of screens is increased to over 90%, reducing material waste.
降低门槛：智能化操作界面，新员工经简单培训即可上手，减少对熟练工的依赖。
Threshold Reduction: With an intelligent operation interface, new employees can get started after simple training, reducing reliance on skilled workers.
